SOLARTODO 10kWh Residential Stack LFP: A Technical Deep Dive

Introduction: The New Standard in Residential Energy Storage

The global transition to renewable energy has catalyzed profound innovations in battery energy storage systems (BESS). For the residential sector, this translates to a growing demand for safe, reliable, and long-lasting solutions that maximize solar self-consumption and provide energy independence. The SOLARTODO 10kWh Residential Stack is an advanced energy storage solution engineered to meet these demands. Utilizing Lithium Iron Phosphate (LFP) chemistry, a technology renowned for its exceptional safety profile and operational longevity, this system represents the pinnacle of modern residential energy management. With a nominal capacity of 10 kWh and a continuous power output of 5 kW, it is designed to seamlessly integrate with new or existing photovoltaic (PV) installations, empowering homeowners to reduce grid dependency, lower electricity bills, and ensure a resilient power supply.

This document provides a comprehensive technical overview of the SOLARTODO 10kWh Residential Stack, detailing its core technology, system architecture, performance metrics, and adherence to stringent international safety and performance standards. It is intended for an audience of system integrators, professional installers, and technically-inclined homeowners seeking a detailed understanding of the product's capabilities and design principles.

Core Technology: The Superiority of Lithium Iron Phosphate (LFP)

The choice of battery chemistry is the most critical determinant of a BESS's safety, lifespan, and performance. The SOLARTODO 10kWh Residential Stack is built upon Lithium Iron Phosphate (LiFePO4) cells, a strategic choice that prioritizes safety and long-term value over the higher energy density of alternative chemistries like Nickel Cobalt Manganese (NCM).

Unparalleled Safety and Thermal Stability

LFP chemistry is inherently more stable than other lithium-ion variants. The phosphate-based cathode material has a stronger covalent bond, which prevents the release of oxygen during overcharging or high-temperature events. This chemical stability virtually eliminates the risk of thermal runaway, a dangerous chain reaction that can lead to fire and explosion in other lithium-ion batteries. The system's safety is further validated by rigorous testing under the UL 9540A standard, which evaluates thermal runaway fire propagation in BESS. The SOLARTODO system has successfully passed these tests, ensuring that even in the unlikely event of a single cell failure, the event is contained and does not cascade to adjacent cells or modules. This multi-layered safety approach, from the cell chemistry to the system-level design, provides homeowners with unparalleled peace of mind.

Exceptional Longevity and Cycle Life

Residential energy storage is a long-term investment. The SOLARTODO 10kWh system is engineered for durability, offering a cycle life of over 6,000 cycles at an 80% Depth of Discharge (DoD). This means the battery can be fully charged and discharged more than 6,000 times before its capacity degrades to 80% of its original rating. For a typical residential application involving one cycle per day, this translates to a service life of over 15 years, far exceeding the typical 10-year warranty period. This longevity is a direct result of the stable crystalline structure of LFP, which experiences minimal structural degradation during the charge and discharge processes (intercalation and deintercalation of lithium ions). This resilience ensures a low total cost of ownership and a reliable energy supply for decades.

System Architecture and Integrated Components

The SOLARTODO 10kWh Residential Stack is a fully integrated system where each component is optimized to work in concert, delivering maximum efficiency, safety, and performance.

High-Performance Battery Modules

The system's core consists of high-quality prismatic LFP cells enclosed in a rugged, lightweight aluminum housing. These cells are laser-welded and assembled into a 10 kWh module designed for optimal thermal management and mechanical stability. The modular, stackable design allows for a clean, compact installation and provides the flexibility to expand the system's capacity in the future if energy needs grow.

Advanced Power Conversion System (PCS)

A 5 kW bidirectional inverter serves as the brain and muscle of the system. This high-frequency, transformerless PCS achieves a peak efficiency of over 96%, minimizing energy losses during the conversion of DC power from the battery to AC power for the home, and vice-versa. It is fully compliant with the IEEE 1547 standard for interconnection of distributed energy resources, ensuring seamless and safe operation in both grid-tied and off-grid (island) modes. In the event of a grid outage, the PCS can automatically switch to island mode in under 20 milliseconds, providing an uninterruptible power supply (UPS) for critical loads.

Intelligent Battery Management System (BMS)

The sophisticated Battery Management System (BMS) is the guardian of the battery. It continuously monitors every critical parameter, including the State of Charge (SOC), State of Health (SOH), cell voltage, current, and temperature. The BMS performs active cell balancing, ensuring that all cells within the module are charged and discharged uniformly, which maximizes usable capacity and extends the battery's overall lifespan. Its multi-tiered protection protocols guard against over-voltage, under-voltage, over-current, and over-temperature conditions, automatically isolating the battery to prevent damage.

Optimized Thermal Management

While LFP chemistry is thermally stable, maintaining an optimal operating temperature is key to maximizing performance and longevity. The SOLARTODO 10kWh system employs a passive and forced-air cooling system. The aluminum enclosure is designed to effectively dissipate heat, while ultra-quiet, variable-speed fans activate only when necessary to maintain the cells within their ideal operating range of 15°C to 35°C. This efficient air-cooling strategy is perfectly suited for residential applications, offering a reliable and low-maintenance solution without the complexity of liquid cooling required for larger, commercial-scale systems.

Performance, Economics, and Compliance

Key Performance Indicators

The SOLARTODO 10kWh system is engineered to deliver top-tier performance across all key metrics.

Economic Benefits

Investing in the SOLARTODO 10kWh system provides significant financial returns. By storing excess solar energy generated during the day for use during evening peak hours, homeowners can drastically reduce their reliance on expensive grid electricity. This self-consumption optimization is the primary driver of savings. In regions with Time-of-Use (TOU) electricity rates, the system can be programmed to charge during off-peak hours when electricity is cheap and discharge during peak hours when it is expensive, a strategy known as tariff arbitrage. Based on an average electricity price of $0.25/kWh and one full cycle per day, the system can yield annual savings of approximately $820, leading to a payback period of 4-6 years, depending on local incentives and electricity rates.

Adherence to International Standards

SOLARTODO is committed to delivering products that meet the highest global standards for safety, reliability, and performance. The 10kWh Residential Stack is designed and tested in accordance with the following key standards:

• UL 9540: The primary safety standard for Energy Storage Systems and Equipment.
• UL 9540A: The test method for evaluating thermal runaway fire propagation in BESS.
• IEC 62619: International safety requirements for secondary lithium cells and batteries for use in industrial applications.
• UN 38.3: Requirements for the safe transport of lithium batteries.
• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems.
• IEEE 1547: Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces.

Frequently Asked Questions (FAQ)

1. What makes LFP safer than other lithium-ion batteries? LFP (Lithium Iron Phosphate) chemistry is inherently more stable due to the strong covalent bond in its cathode material. This structure resists oxygen release during stress events like overcharging or high temperatures, which is the primary trigger for thermal runaway in other chemistries like NCM. Our system is also UL 9540A tested to prevent fire propagation, providing multiple layers of safety.

2. Can this system power my entire home during a blackout? The system provides 5 kW of continuous power, which is sufficient to run essential loads like lights, refrigerators, and internet routers, plus some larger appliances. However, it may not be able to power an entire home simultaneously, especially with high-draw appliances like central air conditioning. The system can be configured to back up specific, critical circuits to ensure they remain powered during an outage.

3. Is the 10kWh capacity expandable? Yes, the SOLARTODO Residential Stack features a modular design. While this specific model is a 10kWh unit, the architecture is designed for future expansion. You can consult with a certified installer to discuss adding more battery capacity to your system as your energy needs evolve over time, subject to inverter and balance-of-system limitations.

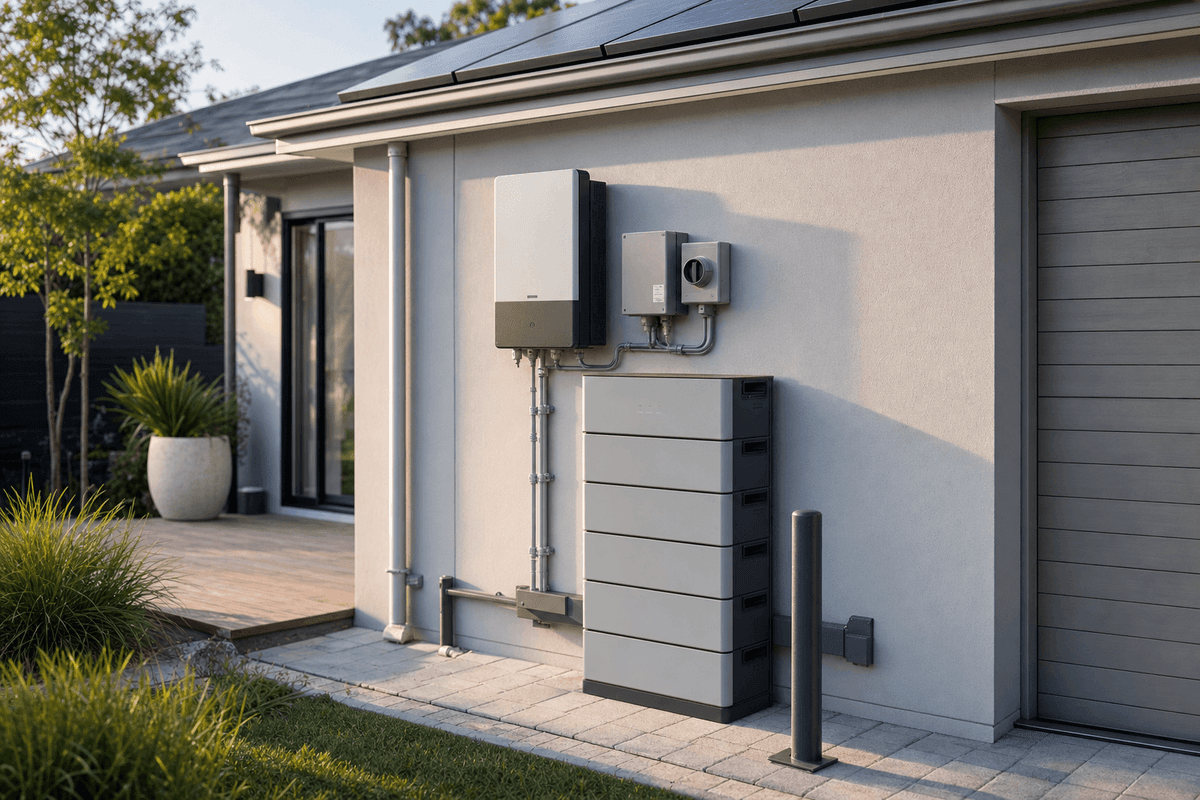

4. What is the installation process like? Installation must be performed by a SOLARTODO-certified installer. The process typically takes one day and involves mounting the unit to a wall (usually in a garage or utility room), making the electrical connections to your home's main panel and the solar inverter, and commissioning the system. The wall-mounted design has a small footprint, preserving valuable floor space.

5. How does the 10-year warranty work? The warranty guarantees that the battery will retain at least 70% of its original 10 kWh capacity after 10 years of operation or 6,000 cycles, whichever comes first. This ensures your investment is protected and that the system will continue to deliver substantial energy capacity and financial savings throughout its warranted life, providing long-term peace of mind.
