200kWh Hybrid LFP+Supercap High Power - Ultra-Fast Grid Response System

The SOLARTODO 200kWh Hybrid LFP+Supercap High Power system represents a paradigm shift in commercial and industrial energy storage. By integrating the high energy density of Lithium Iron Phosphate (LFP) batteries with the exceptional power density and cycle life of supercapacitors, this system delivers a solution uniquely tailored for high-power, fast-response applications. With 200 kWh of nominal capacity and a continuous power rating of 400 kW, it achieves a 2C discharge rate, making it an ideal asset for demanding grid services like frequency regulation, peak shaving, and voltage support. The integration of supercapacitors enables an ultra-fast response time of less than 20 milliseconds, a capability that traditional battery-only systems cannot match. This hybrid architecture ensures that the LFP cells are shielded from high-frequency, high-current cycling, significantly extending their operational lifespan to over 15,000 cycles while the supercapacitors handle the instantaneous power demands, capable of over 1 million cycles.

This advanced system is engineered for performance, safety, and longevity. It complies with stringent international standards, including UL 9540 for Energy Storage Systems and Equipment and IEC 62619 for secondary lithium cells and batteries for use in industrial applications. The design prioritizes not just performance metrics but also operational reliability and safety, incorporating a three-tier fire suppression system and a sophisticated Battery Management System (BMS) that provides real-time monitoring and protection down to the individual cell level. Housed in a plug-and-play, containerized solution, the SOLARTODO 200kWh system is designed for rapid deployment and seamless integration into existing energy infrastructure, offering a scalable and future-proof investment for businesses aiming to optimize their energy usage and participate in lucrative grid service markets.

The core innovation of the SOLARTODO system lies in its sophisticated hybrid design, which leverages the distinct advantages of two complementary energy storage technologies. The bulk of the energy capacity, 200 kWh, is provided by advanced Lithium Iron Phosphate (LFP) cells, renowned for their inherent safety, thermal stability, and long cycle life. LFP chemistry, which avoids the use of cobalt, offers a more sustainable and ethically sourced solution compared to nickel-manganese-cobalt (NMC) alternatives. These cells provide the deep energy reserves necessary for sustained energy arbitrage and self-consumption optimization, allowing facilities to store low-cost off-peak energy or excess solar generation for use during high-cost peak demand periods. Working in tandem with the LFP battery bank is a high-performance supercapacitor module. Supercapacitors, also known as ultracapacitors, store energy in an electric field rather than through a chemical reaction, enabling them to charge and discharge almost instantaneously. This allows them to handle the volatile, high-frequency power fluctuations characteristic of grid regulation services. By absorbing and dispatching power in sub-20-millisecond intervals, the supercapacitors manage the strenuous peak loads, thereby protecting the LFP battery from the degradation associated with rapid, high-current cycling. This synergy extends the system's calendar life to over 20 years and its cycle life to more than 15,000 full depth-of-discharge cycles, ensuring a reliable and long-lasting performance that maximizes return on investment.

Engineered for high-power scenarios, the SOLARTODO 200kWh system delivers a continuous power output of 400 kW and can sustain peak discharge rates of up to 4C for short durations, providing up to 800 kW of instantaneous power when required. This high C-rate is critical for applications such as frequency containment reserve (FCR) and fast frequency response (FFR), where grid operators require near-instantaneous injection or absorption of power to maintain grid stability at the 50/60 Hz standard. The system's round-trip efficiency (RTE) exceeds 96% at the DC level, a figure achieved through the seamless coordination of the LFP and supercapacitor elements by the advanced BMS and the high-efficiency bidirectional Power Conversion System (PCS). The PCS is a critical component, featuring an insulated-gate bipolar transistor (IGBT) based inverter that supports both grid-tied and islanded modes of operation. In grid-tied mode, it can seamlessly export power to the grid or charge from it, adhering to grid codes such as IEEE 1547. In the event of a grid outage, the system can transition to island mode in under 20 milliseconds, providing resilient backup power to critical loads. This ensures uninterrupted operations for facilities like data centers, hospitals, and manufacturing plants. The system's robust thermal management, utilizing liquid cooling, maintains an optimal operating temperature range between -10°C and 55°C, ensuring consistent performance and safety across diverse environmental conditions.

Safety is paramount in the design of any high-voltage energy storage system. The SOLARTODO 200kWh hybrid system is built to meet and exceed the industry's most rigorous safety standards, including UL 9540A, which tests for thermal runaway fire propagation in battery energy storage systems. The system employs a multi-layered safety architecture. At the cell level, the inherent thermal stability of LFP chemistry provides a foundational layer of safety. This is augmented by a comprehensive Battery Management System (BMS) that continuously monitors cell voltage, temperature, and state of charge (SOC), providing active cell balancing and immediate disconnection in the case of any anomaly. Beyond the BMS, the system incorporates a three-tier fire suppression protocol compliant with NFPA 855 standards. This includes early-stage gas detection sensors that can identify off-gassing from a failing cell, triggering an automated system shutdown and ventilation sequence. Should a thermal event escalate, a localized fire suppression agent is deployed directly at the module level to contain the event. As a final safeguard, a total-flooding clean agent fire suppression system is integrated into the 20ft container, capable of extinguishing a fire without damaging the electronic equipment. This comprehensive approach ensures the safety of personnel and assets, providing peace of mind and insurability for any installation.

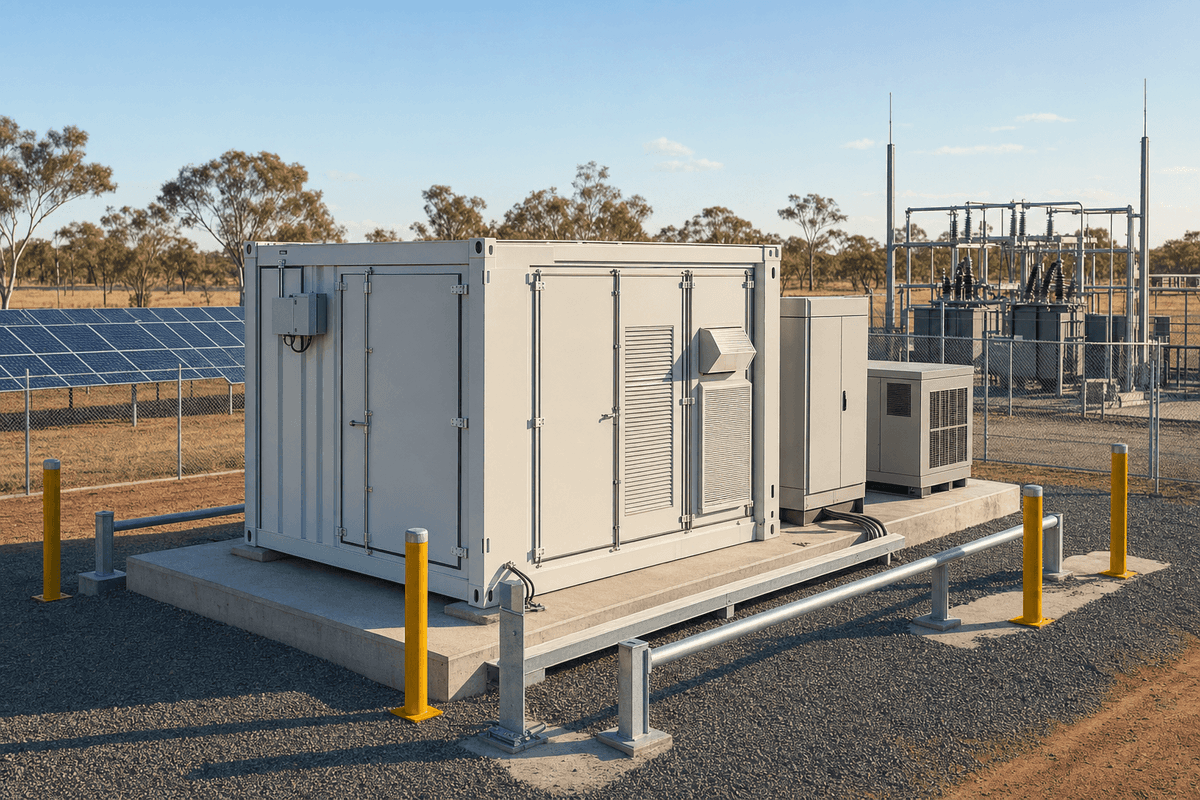

The SOLARTODO 200kWh system is delivered as a fully integrated, containerized solution, minimizing on-site construction and commissioning time. The 20-foot container houses the battery racks, supercapacitor modules, BMS, PCS, thermal management, and fire suppression systems in a plug-and-play design. This modular approach allows for scalability; multiple units can be deployed in parallel to meet multi-megawatt-hour capacity requirements. The system is managed by a sophisticated Energy Management System (EMS) that provides a user-friendly interface for monitoring performance, configuring operating modes, and analyzing historical data. The EMS software utilizes advanced algorithms for self-consumption optimization, maximizing the use of on-site solar generation and minimizing reliance on the grid. It can be programmed to perform energy arbitrage by automatically charging during low-price periods and discharging during high-price periods, generating revenue for the system owner. For grid service applications, the EMS can interface directly with utility or aggregator control platforms via standard protocols like DNP3 or Modbus TCP/IP, enabling automated participation in ancillary service markets. With a warranty of 10 years guaranteeing 70% capacity retention, the SOLARTODO system offers a bankable, high-performance energy storage solution for the modern grid.
