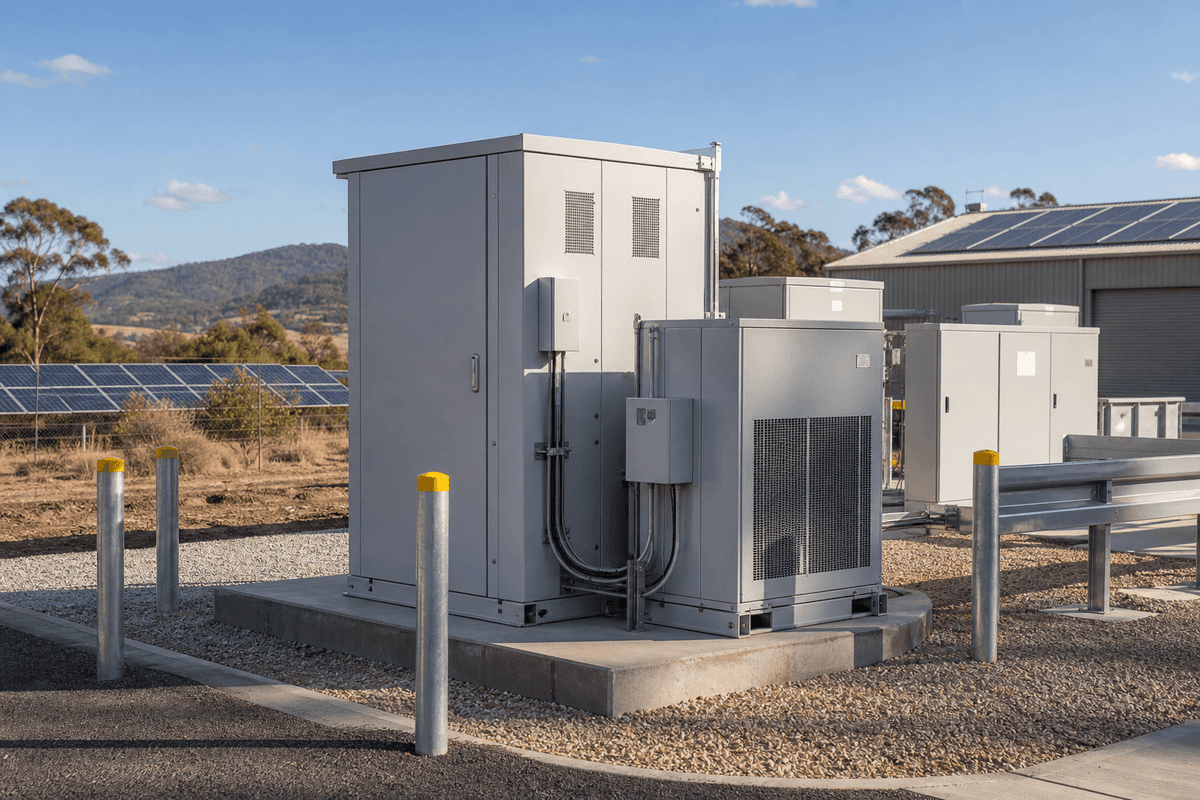

SOLARTODO 100kWh Space-Constrained NCM Energy Storage System

High-Density Power for Urban Environments

The SOLARTODO 100kWh Space-Constrained NCM Battery Energy Storage System (BESS) represents the pinnacle of energy storage technology, engineered specifically for commercial and industrial applications where space is a premium. This system leverages the high energy density of Nickel-Cobalt-Manganese (NCM) chemistry to deliver a substantial 100 kWh of energy capacity and 100 kW of power output within an exceptionally compact 2-square-meter footprint. Its design is a direct response to the growing need for robust, reliable, and space-efficient energy solutions in dense urban and commercial landscapes. By integrating advanced battery technology with a state-of-the-art Power Conversion System (PCS) and a sophisticated Battery Management System (BMS), this BESS offers unparalleled performance for self-consumption optimization, peak shaving, and maximizing the utilization of on-site renewable energy sources like solar PV.

Core Technology: NCM for Unmatched Energy Density

The heart of the system is its advanced NCM battery, a chemistry renowned for its exceptional energy density, which reaches up to 250 Wh/kg. This allows the system to store a significant amount of energy in a smaller and lighter package compared to other lithium-ion chemistries like Lithium Iron Phosphate (LFP). The battery is designed for longevity and reliability, offering a cycle life of 3,000 to 5,000 cycles at an 80% Depth of Discharge (DoD), ensuring a long operational lifespan and a strong return on investment. This high-density characteristic, compliant with international safety standards like IEC 62619 and transportation regulations such as UN38.3, makes the SOLARTODO 100kWh NCM system the ideal choice for installations in basements, electrical rooms, or rooftops where every square meter is critical.

Advanced Power Conversion and Grid Integration

At the core of its power delivery is a high-efficiency bidirectional Power Conversion System (PCS) with a peak efficiency exceeding 96%. This inverter is fully compliant with the IEEE 1547 standard for interconnecting distributed resources with electric power systems, ensuring seamless and safe grid integration. The PCS supports both grid-tied and island modes, providing operational flexibility. In grid-tied mode, it enables applications like peak shaving and demand response, while its islanding capability ensures a continuous power supply for critical loads during grid outages. The PCS manages the conversion between DC power from the battery and AC power for the facility with minimal energy loss, maximizing the system's round-trip efficiency and economic benefits.

Intelligent Battery Management and Thermal Control

To ensure optimal performance, safety, and longevity, the system is governed by a sophisticated Battery Management System (BMS). The BMS provides real-time monitoring of critical parameters, including State of Charge (SOC), State of Health (SOH), cell voltage, and temperature. Its active cell balancing technology ensures that all battery cells are charged and discharged uniformly, preventing over-stress on individual cells and extending the overall life of the battery pack. For thermal stability, the 100kWh system employs a high-performance liquid cooling system. This advanced thermal management is critical for C&I systems over 100kWh, as it maintains the battery cells within their optimal operating temperature range (typically 15°C to 35°C), even during high-power charge and discharge cycles, mitigating degradation and ensuring consistent performance.

Uncompromising Safety and Compliance

Safety is paramount in the design of the SOLARTODO BESS. The system is engineered to meet the stringent requirements of UL 9540 for Energy Storage Systems and Equipment and has undergone rigorous UL 9540A testing to evaluate thermal runaway fire propagation. A multi-tiered safety architecture is integrated into the system, featuring a three-level fire suppression system that includes gas detection, early warning alarms, and an automated fire extinguishing agent. In the event of a detected thermal anomaly or gas leak, the system automatically initiates a shutdown procedure and isolates the battery, adhering to the safety protocols outlined in NFPA 855, the Standard for the Installation of Stationary Energy Storage Systems. This comprehensive approach ensures the safety of the asset, the facility, and personnel.

Applications and Economic Advantages

The primary application for the 100kWh Space-Constrained NCM BESS is the optimization of energy self-consumption for commercial enterprises. By storing excess solar energy generated during the day and dispatching it during peak demand periods, businesses can significantly reduce their reliance on the grid and lower their electricity bills. The system enables participation in demand response programs and can reduce high demand charges, which often constitute a significant portion of a commercial utility bill. With a 100 kW power rating, the system can effectively shave peaks in energy consumption, leading to direct financial savings. The combination of high energy density, a long cycle life of over 3,000 cycles, and a high round-trip efficiency results in a compelling payback period and substantial long-term value.

Frequently Asked Questions (FAQ)

1. What makes NCM chemistry suitable for space-constrained applications?

Nickel-Cobalt-Manganese (NCM) chemistry offers a superior energy density, reaching up to 250 Wh/kg. This allows us to pack 100 kWh of energy into a compact 2-square-meter footprint, which is significantly smaller than what is typically achievable with other chemistries like LFP. This makes it an ideal solution for urban commercial buildings, data centers, and industrial facilities where floor space is limited and valuable, without compromising on power or capacity.

2. How does the liquid cooling system improve performance and lifespan?

For a 100kWh commercial system, a liquid cooling system is essential for maintaining optimal battery temperature, typically between 15°C and 35°C. It actively dissipates heat generated during high-power charge and discharge cycles far more effectively than air cooling. This precise thermal management minimizes cell degradation, preserves a high round-trip efficiency of over 95%, and helps the battery achieve its full design life of 3,000-5,000 cycles, ensuring reliable long-term performance and protecting the investment.

3. What safety certifications does the system hold?

Our system is engineered for maximum safety and complies with the most rigorous industry standards. It is certified to UL 9540 for energy storage system safety and has passed UL 9540A large-scale fire testing. The design also adheres to NFPA 855 for installation, IEC 62619 for battery safety, and UN38.3 for transportation. These certifications, combined with our three-tier fire suppression and automated shutdown protocols, ensure the highest level of safety for your property and personnel.

4. Can this system operate during a grid outage?

Yes, the system is equipped with a bidirectional PCS that supports both grid-tied and islanding modes. In the event of a grid failure, the system can automatically disconnect from the grid and form a stable, independent microgrid. This islanding capability provides a reliable backup power source for your facility's critical loads, such as servers, lighting, and security systems, ensuring business continuity with an uninterruptible power supply of up to 100 kW.

5. What is the typical warranty and expected lifespan of the system?

The SOLARTODO 100kWh NCM BESS comes with a standard 10-year warranty, guaranteeing at least 70% of the original energy capacity at the end of the term. The battery itself is designed for a long operational life, rated for 3,000 to 5,000 cycles at an 80% depth of discharge. With proper maintenance and operation within specified parameters, the system has a calendar life expectancy of over 15 years, providing a durable and reliable long-term energy asset.

References

[1] IEC 62619:2022 - Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for secondary lithium cells and batteries, for use in industrial applications. [2] UL 9540 - Standard for Energy Storage Systems and Equipment. [3] UL 9540A - Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems. [4] NFPA 855 - Standard for the Installation of Stationary Energy Storage Systems. [5] IEEE 1547-2018 - IEEE Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces. [6] UN38.3 - Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria, Section 38.3.
