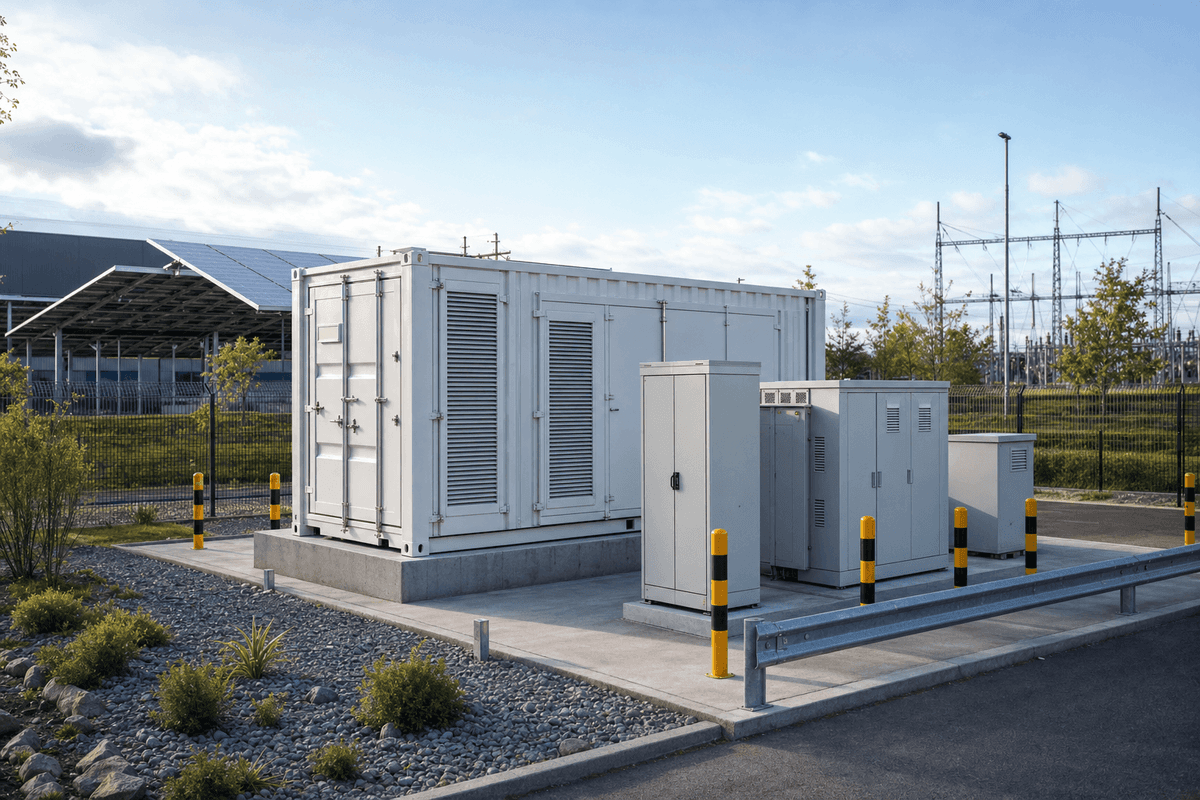

1MWh C&I Arbitrage LFP Container - Turnkey Energy Storage Solution

The SOLARTODO 1MWh Commercial & Industrial (C&I) Arbitrage LFP Container is a fully integrated, turnkey Battery Energy Storage System (BESS) engineered for high-performance energy arbitrage applications. With a nameplate capacity of 1,000 kWh and a continuous power rating of 500 kW, this 20-foot containerized solution is designed to empower businesses to capitalize on electricity price differentials, enhance grid stability, and unlock new revenue streams. By leveraging the inherent safety and longevity of Lithium Iron Phosphate (LFP) battery chemistry, this system delivers a robust, reliable, and cost-effective solution for the modern energy landscape.

Core Technology: Superior LFP Chemistry

The heart of the system is its advanced Lithium Iron Phosphate (LFP) battery bank. Unlike conventional Nickel Cobalt Manganese (NCM) chemistries, LFP is renowned for its exceptional thermal stability, virtually eliminating the risk of thermal runaway—a critical safety consideration for large-scale energy storage. This inherent safety is a cornerstone of the SOLARTODO design philosophy, ensuring peace of mind and operational security. The system is built with high-density prismatic LFP cells, encased in durable aluminum housings, which are optimized for longevity and performance. These cells are rated for over 6,000 charge-discharge cycles to 80% depth of discharge, providing a warrantied operational lifespan of over 10 years with two full cycles per day. With LFP cell prices projected to fall to between $40-55/kWh by 2025, the economic viability of large-scale energy storage has never been more compelling.

System Architecture and Performance

Our 1MWh system is a masterpiece of integration, housing all critical components within a standard 20-foot ISO container. This plug-and-play design drastically reduces on-site installation complexity and commissioning time. The core of the power electronics is a state-of-the-art 500 kW bidirectional Power Conversion System (PCS). This high-efficiency inverter achieves a round-trip efficiency of over 96%, minimizing energy losses during charge and discharge cycles. The PCS is capable of both grid-tied operation, for seamless interaction with the utility grid, and island mode, providing critical backup power during grid outages.

Overseeing the entire operation is a sophisticated Battery Management System (BMS). The BMS provides real-time monitoring of critical parameters, including State of Charge (SOC), State of Health (SOH), and individual cell voltages and temperatures. Its active cell balancing algorithms ensure that all cells within the battery bank are charged and discharged uniformly, maximizing the usable capacity and extending the overall lifespan of the system. The BMS also serves as the first line of defense, with built-in protections against over-voltage, under-voltage, over-current, and short-circuit events.

Advanced Thermal Management

Maintaining optimal battery temperature is crucial for both performance and longevity. For a system of this magnitude (1MWh), passive air cooling is insufficient. The SOLARTODO container employs a sophisticated liquid cooling system to ensure precise thermal regulation. A non-flammable, dielectric coolant circulates through dedicated channels within the battery racks, actively drawing heat away from the cells. This system maintains the battery modules within their ideal operating temperature range of 15°C to 35°C, even under high charge/discharge rates of 0.5C. This active thermal management is essential for achieving the guaranteed 6,000+ cycle life and ensuring consistent performance across a wide range of ambient conditions, from -10°C to 45°C.

Uncompromising Safety and Compliance

Safety is paramount in all SOLARTODO products. The 1MWh LFP Container is engineered to meet and exceed the most stringent international safety standards. The system has undergone rigorous testing and is designed for compliance with UL 9540, the benchmark standard for Energy Storage Systems and Equipment. The battery modules themselves are certified to IEC 62619, which specifies safety requirements for secondary lithium batteries in industrial applications, and have passed UN38.3 transportation tests.

Our multi-layered safety approach includes a three-tier fire suppression system. This includes early-warning gas detection sensors that can trigger an automatic system shutdown, an inert gas fire suppression agent to extinguish any potential fire without damaging the equipment, and robust fire-rated container construction. The entire system has been evaluated according to the UL 9540A test method, which assesses fire safety at the cell, module, and unit level to prevent large-scale thermal events. Furthermore, the installation guidelines are fully compliant with NFPA 855, the Standard for the Installation of Stationary Energy Storage Systems, ensuring a safe and code-compliant deployment at your facility.

Application: C&I Energy Arbitrage

The primary application for this system is energy arbitrage, a strategy that leverages fluctuations in electricity prices. The business case is simple: charge the batteries during off-peak hours when electricity is cheap, and discharge them during peak hours to either power your facility or sell energy back to the grid when prices are high. This strategy is most effective in markets with a significant Time-of-Use (ToU) tariff spread, typically requiring a differential of at least $0.10/kWh to be profitable. With the ability to perform two full cycles per day, the system can generate substantial annual savings. For example, with a $0.10/kWh spread, two cycles per day (2,000 kWh discharged) can yield $200 per day, or over $70,000 in annual revenue, leading to a payback period of as little as 3-5 years.
