SOLARTODO 1MWh C&I Arbitrage LFP Container: A Technical Deep Dive

1. Introduction: Redefining Commercial Energy Strategy

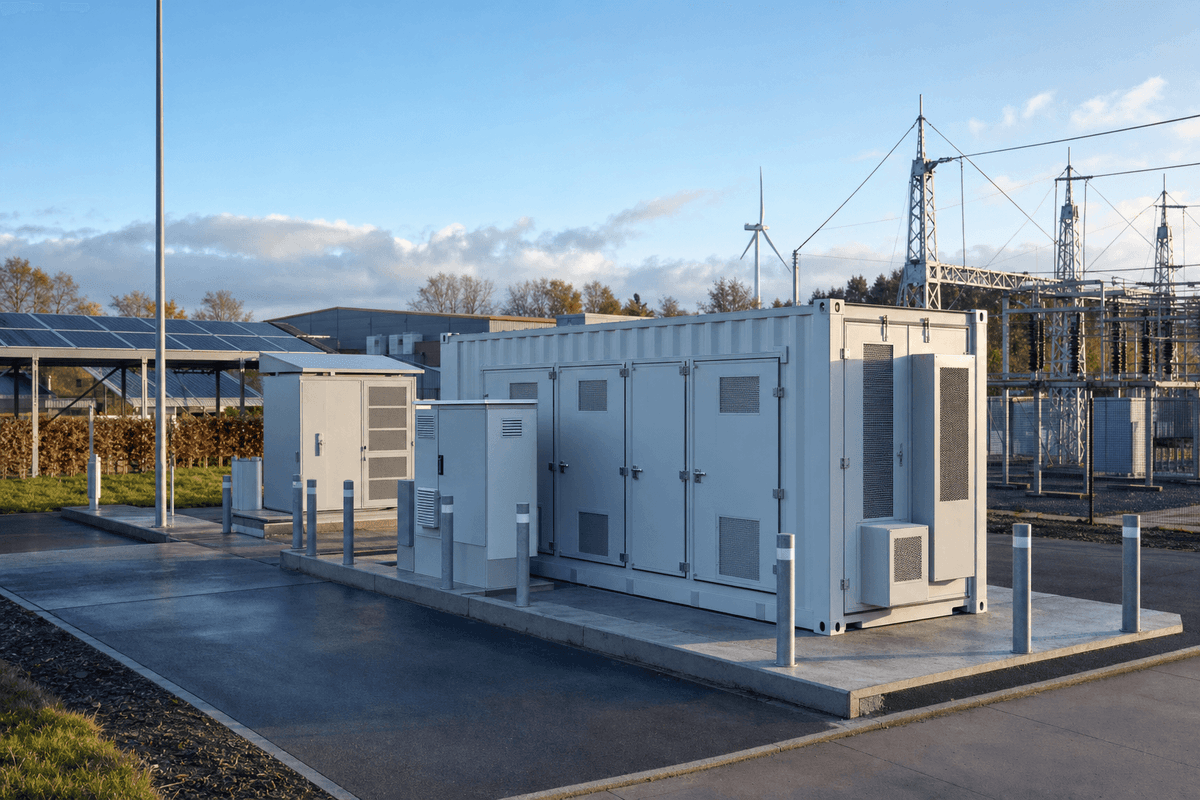

The SOLARTODO 1MWh C&I Arbitrage LFP Container is a turnkey Battery Energy Storage System (BESS) engineered for commercial and industrial (C&I) applications. This integrated solution, housed within a standard 20-foot container, delivers a powerful combination of 1000 kWh energy capacity and 500 kW power output. Designed specifically for energy arbitrage, it enables businesses to capitalize on electricity price differentials by storing energy when it is cheap and dispatching it when it is expensive. By leveraging the inherent safety and longevity of Lithium Iron Phosphate (LFP) battery chemistry, this system offers a robust, reliable, and cost-effective tool for advanced energy management. It is fully compliant with stringent international standards, including UL 9540 and IEC 62619, ensuring safe and dependable operation across its 15-year design life.

2. Core Technology: The Superiority of Lithium Iron Phosphate (LFP)

The heart of the system is its advanced LFP (LiFePO4) battery bank. Unlike nickel-cobalt-manganese (NCM) chemistries, LFP is renowned for its exceptional thermal stability, virtually eliminating the risk of thermal runaway—a critical safety concern in high-density energy storage. This inherent safety is a cornerstone of the system's design, as validated by rigorous UL 9540A testing for fire safety. The prismatic LFP cells, encased in durable aluminum housings, are engineered for longevity, delivering over 6,000 charge-discharge cycles while retaining at least 80% of their original capacity. This high cycle life, coupled with a slow degradation rate, ensures a long operational lifespan and a superior return on investment, making it the ideal chemistry for high-frequency applications like energy arbitrage, which typically involves two full cycles per day.

3. System Architecture: An Integrated, High-Performance Design

The 1MWh container is a masterpiece of integration, combining state-of-the-art components into a single, plug-and-play unit. The system architecture is built around four key pillars:

• Battery System: The 1000 kWh LFP battery array is the core energy reservoir. The prismatic cells are organized into modules and racks, optimized for energy density and thermal management. The total system weight is approximately 12,000 kg.
• Power Conversion System (PCS): A 500 kW bidirectional inverter serves as the gateway to the grid. This high-efficiency unit operates at over 96% round-trip efficiency, minimizing energy losses during charge and discharge cycles. It supports both grid-tied operation for arbitrage and island mode for backup power, providing operational flexibility.
• Battery Management System (BMS): The sophisticated BMS is the brain of the operation. It provides real-time monitoring of critical parameters, including State of Charge (SOC), State of Health (SOH), cell voltage, and temperature. Its active cell balancing algorithms ensure that all cells are charged and discharged uniformly, maximizing the usable capacity and extending the battery's life to over 6,000 cycles.
• Thermal Management: A precision liquid cooling system maintains the battery cells within their optimal operating temperature range of 15°C to 35°C. This is crucial for C&I systems exceeding 100 kWh, as it prevents performance degradation and premature aging caused by heat buildup during rapid charge/discharge cycles. The system consumes less than 5 kW of auxiliary power.

4. Application: Mastering Energy Arbitrage

This BESS is purpose-built for energy arbitrage, a strategy that exploits fluctuations in electricity prices. The system is programmed to automatically charge from the grid during off-peak hours when electricity rates are low (e.g., $0.05/kWh) and discharge during peak hours when rates are high (e.g., $0.20/kWh). To be profitable, this strategy requires a time-of-use (ToU) tariff with a price spread of at least $0.10/kWh between peak and off-peak periods. With a 1000 kWh capacity and two cycles per day, the system can generate significant daily revenue, leading to an estimated annual savings of over $70,000 and a payback period of as little as 3-5 years, depending on the local tariff structure.

5. Uncompromising Safety and Global Compliance

Safety is paramount in the design of the SOLARTODO 1MWh container. The system incorporates a multi-tiered safety protocol that meets and exceeds global standards.

• Fire Safety: A three-tier fire suppression system provides comprehensive protection. It includes gas detection sensors that trigger an automatic system shutdown and an inert gas fire suppression agent (e.g., Novec 1230) that extinguishes fires without damaging the equipment. The system has successfully passed the UL 9540A large-scale fire test, demonstrating its ability to prevent cell-to-cell thermal propagation.
• Electrical Safety: The system adheres to IEEE 1547 for grid interconnection and UL 1741 for inverters and converters, ensuring safe and reliable interaction with the utility grid.
• Structural and Transport Safety: The container itself is certified under UN38.3 for the safe transport of lithium batteries and complies with NFPA 855 for the installation of stationary energy storage systems.

6. The Containerized Advantage: Plug-and-Play Deployment

The 20-foot container form factor offers significant advantages in terms of deployment speed and scalability. The entire BESS is pre-assembled, integrated, and tested at the factory, arriving on-site as a "plug-and-play" solution. This dramatically reduces on-site construction time, complexity, and associated labor costs, which are typically around $20/kWh for traditional installations. The containerized design also provides a controlled environment, protecting the sensitive equipment from weather and unauthorized access, and is scalable from 200 kWh to over 5 MWh by deploying multiple 20-foot or 40-foot containers.

Technical Specifications

Frequently Asked Questions (FAQ)

1. What is the primary application of this 1MWh BESS?

This system is specifically optimized for commercial and industrial energy arbitrage. It allows businesses to buy and store electricity from the grid when prices are low and sell it back or use it on-site when prices are high. This strategy requires a local utility tariff with a significant time-of-use (ToU) price spread, typically greater than $0.10/kWh, to ensure a profitable return on investment through its two daily cycles.

2. How does the LFP battery chemistry enhance safety?

Lithium Iron Phosphate (LFP) chemistry is inherently safer than other lithium-ion chemistries due to its stable molecular structure. It has a much higher thermal runaway threshold, meaning it is far less likely to overheat and catch fire. Our system has undergone rigorous UL 9540A testing, which confirms that even if a single cell fails, the fire will not propagate to adjacent cells, ensuring the overall safety and integrity of the 1MWh system.

3. What are the key components included in the container?

The SOLARTODO 1MWh container is a fully integrated, plug-and-play solution. It includes the 1000 kWh LFP battery racks, a 500 kW bidirectional Power Conversion System (PCS), a sophisticated Battery Management System (BMS) for cell monitoring and balancing, a liquid-based thermal management system to maintain optimal operating temperatures, and a three-tier automated fire suppression system. Everything is pre-installed and tested in a standard 20-foot container for rapid deployment.

4. What kind of site preparation is required for installation?

Installation is straightforward. The site requires a level concrete pad capable of supporting the system's weight (approximately 15 tons). You will also need to arrange for electrical interconnection to your facility's main distribution panel and the utility grid. Our containerized design minimizes on-site civil works and electrical labor, significantly reducing the typical installation time and costs from weeks to just a few days.

5. What is the expected return on investment (ROI)?

The ROI is highly dependent on local electricity tariffs and usage patterns. However, based on a conservative ToU spread of $0.10/kWh and two full cycles per day, the system can generate over $70,000 in annual savings. With a typical system price between $230,000 and $320,000, this translates to a simple payback period of approximately 3 to 5 years, delivering strong financial returns over its 15-year design life.

References

• [1] UL 9540: Standard for Energy Storage Systems and Equipment
• [2] UL 9540A: Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems
• [3] IEC 62619: Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for secondary lithium cells and batteries, for use in industrial applications
• [4] NFPA 855: Standard for the Installation of Stationary Energy Storage Systems
• [5] UN 38.3: Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria
• [6] IEEE 1547: Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces
