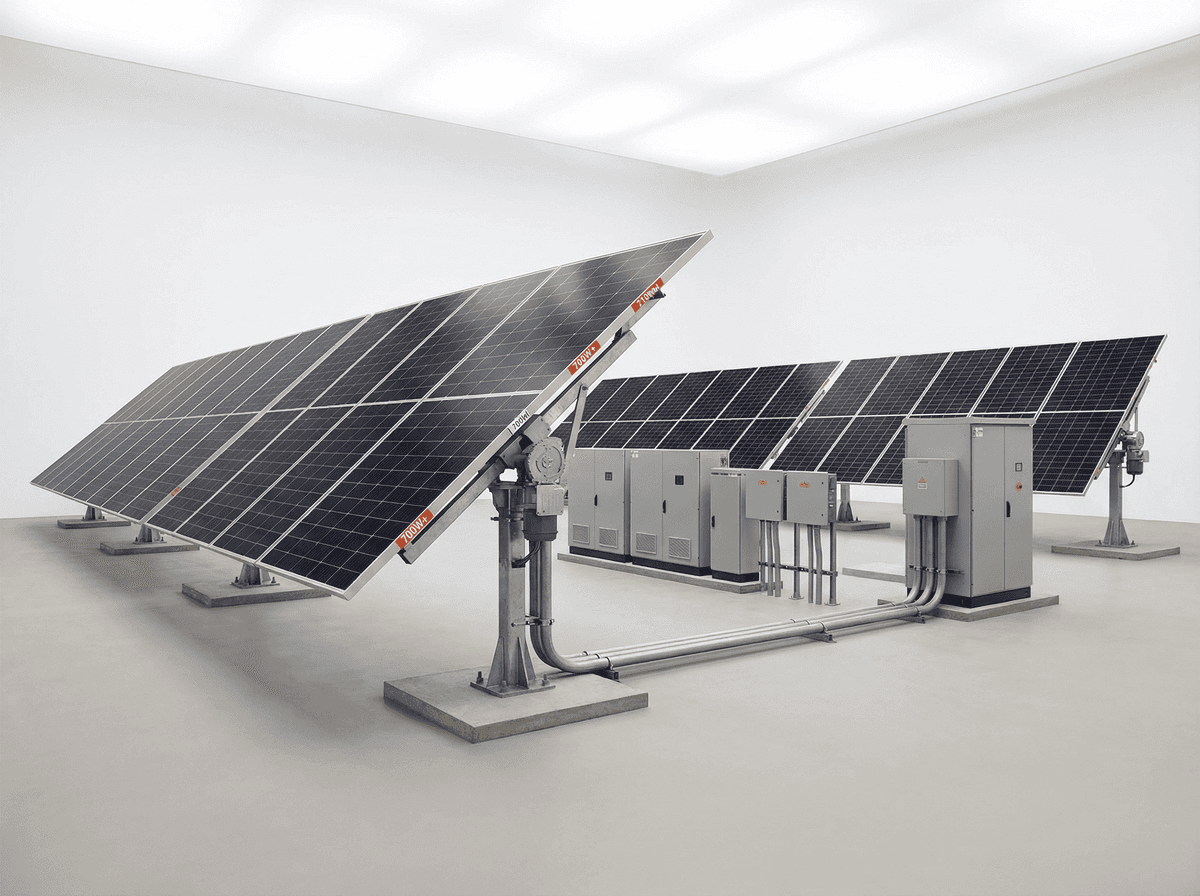

500kW Ground Mount TOPCon Dual-Axis Solar PV System - Maximum Yield Tracking

The SOLARTODO 500kW Ground Mount TOPCon Dual-Axis Solar PV System represents the pinnacle of commercial solar energy generation, combining ultra-high-efficiency N-type TOPCon bifacial modules with precision dual-axis tracking technology. Engineered for maximum energy yield, this system utilizes 700W+ class modules with a mass production efficiency of 24.5%, ensuring optimal performance even in challenging environments. By continuously orienting the solar array toward the sun throughout the day and year, the dual-axis tracking mechanism delivers a remarkable 25% to 40% increase in energy production compared to conventional fixed-tilt installations, making it an ideal solution for utility-scale and large commercial applications seeking the lowest possible Levelized Cost of Energy (LCOE).

Advanced N-Type TOPCon Module Technology

At the core of this 500kW system are state-of-the-art N-type Tunnel Oxide Passivated Contact (TOPCon) solar modules. These panels are built upon large-format 210mm N-type silicon wafers, which inherently offer superior resistance to Light-Induced Degradation (LID) and LeTID compared to traditional P-type PERC cells. The mass production efficiency of these modules reaches an impressive 24.5%, placing them at the forefront of 2026 photovoltaic technology. The 700W+ power class, exemplified by industry-leading models such as the Trina Vertex N series (700–725W), significantly reduces the total number of modules required for a 500kW installation — approximately 695 panels — thereby lowering Balance of System (BOS) costs, including mounting structures, cabling, and labor.

Furthermore, the bifacial design of these TOPCon modules allows them to capture reflected sunlight (albedo) from the ground beneath the array. Depending on the ground surface reflectivity — such as light-colored soil, sand, or crushed stone — the bifacial gain can contribute an additional 10% to 20% to the overall energy yield. This characteristic is particularly advantageous in ground-mount applications where the rear side of the panels is unobstructed. The long-term reliability of these modules is guaranteed by exceptional degradation metrics: less than 1.0% degradation in the first year and an annual degradation rate not exceeding 0.4% thereafter. This robust performance is backed by a comprehensive 30-year linear power warranty, ensuring that the modules will retain at least 87.4% of their original nominal power output at the end of the warranty period. As of 2026, TOPCon technology continues to command approximately 60% of the global solar module market share, confirming its status as the dominant commercial technology.

Precision Dual-Axis Tracking System

The defining feature of this system is its sophisticated dual-axis tracking mechanism. Unlike fixed-tilt systems that remain stationary, or single-axis trackers that follow the sun from east to west, a dual-axis tracker adjusts both the azimuth (horizontal angle) and elevation (vertical tilt) of the solar array. This continuous, real-time alignment ensures that the solar panels are always perfectly perpendicular to the sun's rays, maximizing direct irradiance capture from sunrise to sunset, across all seasons and latitudes.

The implementation of dual-axis tracking yields a substantial performance boost, typically increasing total energy generation by 25% to 40% relative to a fixed-tilt system of the same capacity. For this 500kW system, the applied tracking boost factor of 1.35x translates into an estimated annual generation of 1,080 MWh, compared to approximately 800 MWh for an equivalent fixed-tilt installation. This additional yield is critical for maximizing the return on investment in regions with high Direct Normal Irradiance (DNI), such as the MENA region, Southern Europe, Sub-Saharan Africa, and the American Southwest. The tracker structures are constructed from heavy-duty hot-dip galvanized steel, engineered to withstand severe wind and snow loads in accordance with int
